#include "MoorDynAPI.h"#include "Waves.h"#include "Seafloor.h"#include "Point.h"#include "Rod.h"#include "Line.h"#include "Body.h"#include <stdlib.h>#include <stdint.h>

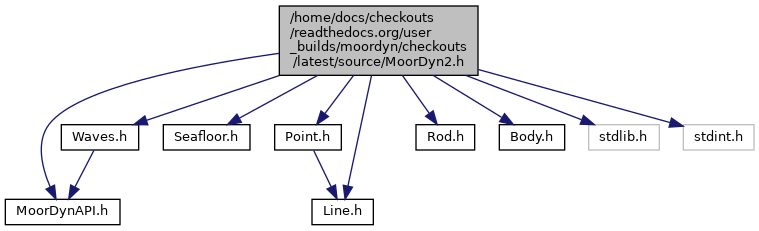

Include dependency graph for MoorDyn2.h:
Go to the source code of this file.
Typedefs | |
| typedef struct __MoorDyn * | MoorDyn |
| A mooring system instance. | |
Functions | |
| MoorDyn DECLDIR | MoorDyn_Create (const char *infilename) |
| Creates a MoorDyn instance. More... | |
| int DECLDIR | MoorDyn_NCoupledDOF (MoorDyn system, unsigned int *n) |
| Get the number of coupled Degrees Of Freedom (DOFs) More... | |
| int DECLDIR | MoorDyn_SetVerbosity (MoorDyn system, int verbosity) |
| Set the instance verbosity level. More... | |
| int DECLDIR | MoorDyn_SetLogFile (MoorDyn system, const char *log_path) |
| Set the instance log file. More... | |
| int DECLDIR | MoorDyn_SetLogLevel (MoorDyn system, int verbosity) |
| Set the instance log file printing level. More... | |
| int DECLDIR | MoorDyn_Log (MoorDyn system, int level, const char *msg) |
| Log a message. More... | |
| int DECLDIR | MoorDyn_Init (MoorDyn system, const double *x, const double *xd) |
| Compute the initial condition of a MoorDyn system. More... | |
| int DECLDIR | MoorDyn_Init_NoIC (MoorDyn system, const double *x, const double *xd) |
| The same than MoorDyn_Init(), but the initial condition is not computed at all. More... | |
| int DECLDIR | MoorDyn_Step (MoorDyn system, const double *x, const double *xd, double *f, double *t, double *dt) |
| Runs a time step of the MoorDyn system. More... | |
| int DECLDIR | MoorDyn_Close (MoorDyn system) |
| Releases MoorDyn allocated resources. More... | |
| MoorDynWaves DECLDIR | MoorDyn_GetWaves (MoorDyn system) |
| Get the wave kinematics instance. More... | |
| MoorDynSeafloor DECLDIR | MoorDyn_GetSeafloor (MoorDyn system) |
| Get the 3D seafloor instance. More... | |
| int DECLDIR | MoorDyn_GetNumberBodies (MoorDyn system, unsigned int *n) |
| Get the number of bodies. More... | |
| MoorDynBody DECLDIR | MoorDyn_GetBody (MoorDyn system, unsigned int b) |
| Get a rigid body. More... | |
| int DECLDIR | MoorDyn_GetNumberRods (MoorDyn system, unsigned int *n) |
| Get the number of rods. More... | |
| MoorDynRod DECLDIR | MoorDyn_GetRod (MoorDyn system, unsigned int r) |
| Get a rod. More... | |
| int DECLDIR | MoorDyn_GetNumberPoints (MoorDyn system, unsigned int *n) |
| Get the number of points. More... | |
| MoorDynPoint DECLDIR | MoorDyn_GetPoint (MoorDyn system, unsigned int c) |
| Get a point. More... | |
| int DECLDIR | MoorDyn_GetNumberLines (MoorDyn system, unsigned int *n) |
| Get the number of lines. More... | |
| MoorDynLine DECLDIR | MoorDyn_GetLine (MoorDyn system, unsigned int l) |
| Get a line instance. More... | |
| int DECLDIR | MoorDyn_GetFASTtens (MoorDyn system, const int *numLines, float FairHTen[], float FairVTen[], float AnchHTen[], float AnchVTen[]) |
| Function for providing FASTv7 customary line tension quantities. More... | |
| int DECLDIR | MoorDyn_GetDt (MoorDyn system, double *dt) |
| Get the current model time step. More... | |
| int DECLDIR | MoorDyn_SetDt (MoorDyn system, double dt) |
| Set the model time step. More... | |
| int DECLDIR | MoorDyn_GetCFL (MoorDyn system, double *cfl) |
| Get the current model Courant–Friedrichs–Lewy factor. More... | |
| int DECLDIR | MoorDyn_SetCFL (MoorDyn system, double cfl) |
| Set the model Courant–Friedrichs–Lewy factor. More... | |
| int DECLDIR | MoorDyn_GetTimeScheme (MoorDyn system, char *name, size_t *name_len) |
| Get the current time scheme name. More... | |
| int DECLDIR | MoorDyn_SetTimeScheme (MoorDyn system, const char *name) |
| Set the time scheme by its name. More... | |
| int DECLDIR | MoorDyn_SaveState (MoorDyn system, const char *filepath) |
| Save the system state, so it can be loaded afterwards. More... | |
| int DECLDIR | MoorDyn_LoadState (MoorDyn system, const char *filepath) |
| Load and set a system state. More... | |
| int DECLDIR | MoorDyn_Serialize (MoorDyn system, size_t *size, uint64_t *data) |
| Serialize the system to bytes. More... | |
| int DECLDIR | MoorDyn_Deserialize (MoorDyn system, const uint64_t *data) |
| Load the system from the serialized data before. More... | |
| int DECLDIR | MoorDyn_Save (MoorDyn system, const char *filepath) |
| Save the system so it can be loaded afterwards. More... | |
| int DECLDIR | MoorDyn_Load (MoorDyn system, const char *filepath) |
| Load the system saved before. More... | |
| int DECLDIR | MoorDyn_SaveVTK (MoorDyn system, const char *filename) |
| Save the whole system to a VTK (.vtm) file. More... | |
External Wave Kinematics | |
The functions for setting external wave kinematics. | |
| int DECLDIR | MoorDyn_ExternalWaveKinInit (MoorDyn system, unsigned int *n) |
| Initializes the external Wave kinematics. More... | |
| int DECLDIR | MoorDyn_ExternalWaveKinGetN (MoorDyn system, unsigned int *n) |
| Get the number of points where the waves kinematics shall be provided. More... | |
| int DECLDIR | MoorDyn_ExternalWaveKinGetCoordinates (MoorDyn system, double *r) |
| Get the points where the waves kinematics shall be provided. More... | |
| int DECLDIR DEPRECATED | MoorDyn_GetWaveKinCoordinates (MoorDyn system, double *r) |
| Get the points where the waves kinematics shall be provided. More... | |
| int DECLDIR | MoorDyn_ExternalWaveKinSet (MoorDyn system, const double *U, const double *Ud, double t) |
| Set the kinematics of the waves. More... | |
| int DECLDIR DEPRECATED | MoorDyn_SetWaveKin (MoorDyn system, const double *U, const double *Ud, double t) |
| Set the kinematics of the waves. More... | |
Detailed Description
C API for the moordyn::MoorDyn object, which is the main simulation handler
