A mooring line. More...

#include <Line.hpp>

Inheritance diagram for moordyn::Line:

[legend]

Collaboration diagram for moordyn::Line:

[legend]

Public Member Functions
	Line (moordyn::Log *log, size_t lineId)
	Constructor. More...

	~Line ()
	Destructor.

void	setup (int number, LineProps *props, real l, unsigned int n, EnvCondRef env_in, shared_ptr< ofstream > outfile, string channels, real dtM0)
	Setup a line. More...

void	setWaves (moordyn::WavesRef waves_in, moordyn::SeafloorRef seafloor_in)
	Set the environmental data. More...

void	initialize ()
	Initialize the line object. More...

void	initialize (InstanceStateVarView state)
	Sets the initial line state. More...

void	setInitialTmax (moordyn::real Tmax0)
	Set the initial Tmax values. More...

void	setInitialTmean (moordyn::real Tmean0)
	Set the initial mean tension values. More...

elastic_model	getElasticModel () const
	Get the elastic model used by the line. More...

unsigned int	getN () const
	Number of segments. More...

moordyn::real	getUnstretchedLength () const
	Get the unstretched length of the line. More...

void	setUnstretchedLength (const moordyn::real len)
	Set the unstretched length of the line. More...

void	setUnstretchedLengthVel (const moordyn::real v)
	Set the unstretched length rate of change of the line. More...

void	updateUnstretchedLength (const moordyn::real dt=0.0)
	Update the unstretched length of the line, according to the velocity. More...

bool	isConstantEA () const
	Get whether the line is governed by a non-linear stiffness or a constant one. More...

moordyn::real	getConstantEA () const
	Get the constant stiffness of the line. More...

void	setConstantEA (moordyn::real EA_in)
	Set the constant stiffness of the line. More...

const vec &	getNodePos (unsigned int i) const
	Get the position of a node. More...

const vec &	getNodeVel (unsigned int i) const
	Get the velocity of a node. More...

const vec &	getNodeForce (unsigned int i) const
	Get the net force on a node. More...

const vec	getNodeTen (unsigned int i) const
	Get the tension on a node, including the internal line damping. More...

const vec &	getNodeBendStiff (unsigned int i) const
	Get the tension on a node, including the internal line damping. More...

const vec &	getNodeWeight (unsigned int i) const
	Get the weight and bouyancy force acting on the node. More...

const vec	getNodeDrag (unsigned int i) const
	Get the drag force acting on the node. More...

const vec	getNodeFroudeKrilov (unsigned int i) const
	Get the Froude-Krilov force acting on the node. More...

const vec	getNodeSeabedForce (unsigned int i) const
	Get the sea bed reaction force acting on the node. More...

const real &	getNodeCurv (unsigned int i) const
	Get the line curvature at a node position. More...

const mat &	getNodeM (unsigned int i) const
	Get the mass and added mass matrix. More...

std::vector< vec >	getNodeCoordinates () const
	Get the array of coordinates of all nodes along the line. More...

void	getFASTtens (float FairHTen, float FairVTen, float AnchHTen, float AnchVTen) const
	Get the tensions at the fairlead and anchor in a FASTv7 friendly way. More...

void	getEndStuff (vec &Fnet_out, vec &Moment_out, mat &M_out, EndPoints end_point) const
	Get the force, moment and mass at the line endpoint. More...

real	GetLineOutput (OutChanProps outChan)
	Get line output. More...

void	storeWaterKin (real dt, std::vector< std::vector< moordyn::real >> zeta, std::vector< std::vector< moordyn::real >> f, std::vector< std::vector< vec >> u, std::vector< std::vector< vec >> ud)
	store wave/current kinematics time series for this line More...

real	calcSubSeg (unsigned int firstNodeIdx, unsigned int secondNodeIdx, real surfaceHeight)
	calculate the volume of the segment between firstNodeIdx and secondNodeIdx submerged More...

std::pair< real, real >	getDrag () const
	Get the drag coefficients. More...

void	setDrag (real cdn, real cdt)
	Set the drag coefficients. More...

void	scaleDrag (real scaler)
	Scale the drag coefficients. More...

void	enablePb ()
	Enable the pressure bending forces (disabled by default) More...

void	disablePb ()
	Disable the pressure bending forces (disabled by default)

bool	enabledPb () const
	Check if pressure bending forces are considered. More...

void	setPin (std::vector< real > p)
	Set the internal pressure at each node of the line. More...

void	setTime (real time)
	Set the line simulation time. More...

Public Member Functions inherited from moordyn::Instance
	Instance (moordyn::Log *log)
	Costructor. More...

virtual	~Instance ()=default
	Destructor.

const size_t	id () const
	Get the unique identifier of this instance. More...

Public Member Functions inherited from moordyn::io::IO
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Public Attributes
int	number
	Line ID.

size_t	lineId

bool	IC_gen = false
	boolean to indicate dynamic relaxation occuring

void	setState (const InstanceStateVarView r)
	Set the line state. More...

void	setEndKinematics (vec r, vec rd, EndPoints end_point)
	Set the position and velocity of an end point. More...

void	setEndOrientation (vec q, EndPoints end_point, EndPoints rod_end_point)
	set end node unit vector More...

vec	getEndSegmentMoment (EndPoints end_point, EndPoints rod_end_point) const
	Get the bending moment at the end point. More...

void	getStateDeriv (InstanceStateVarView drdt)
	Calculate forces and get the derivative of the line's states. More...

void	Output (real)

const size_t	stateN () const
	Get the number of state variables required by this instance. More...

const size_t	stateDims () const
	Get the dimension of the state variable. More...

std::vector< uint64_t >	Serialize (void)
	Produce the packed data to be saved. More...

uint64_t *	Deserialize (const uint64_t *data)
	Unpack the data to restore the Serialized information. More...

void	saveVTK (const char *filename)
	Save the line on a VTK (.vtp) file. More...

const leanvtk::VTPWriter *	getVTK () const
	Get the VTK writer. More...

Additional Inherited Members
Protected Member Functions inherited from moordyn::io::IO
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

A mooring line.

Each mooring line is divided on a set of nodes connected by segments, with two points at the end points

[point (node 0)] - seg 0 - [node 1] - ... - seg n-1 - [point (node N)]

Depending on the length of the line, , the number of segments, , and the material density and Young's modulus, $\rho$ & , a natural oscillation period can be defined:

$T = \frac{l}{\pi n} \sqrt{\frac{\rho}{E}}$

The integration time step (moordyn::MoorDyn.dtM0) should be smaller than this natural period to avoid numerical instabilities

Constructor & Destructor Documentation

◆ Line()

moordyn::Line::Line	(	moordyn::Log *	log,
		size_t	lineId
	)

Constructor.

Parameters

log	Logging handler
lineId	the incremental Id of the line

Member Function Documentation

◆ calcSubSeg()

real moordyn::Line::calcSubSeg	(	unsigned int	firstNodeIdx,
		unsigned int	secondNodeIdx,
		real	surfaceHeight
	)

calculate the volume of the segment between firstNodeIdx and secondNodeIdx submerged

This must be used with adjacent nodes for accurate results. It is currently only implemented for the still water case.

Parameters

firstNodeIdx	Index of the first node of the segment
secondNodeIdx	Index of the second node of the segment
surfaceHeight	Height of the water surface (assumed locally horizontal)

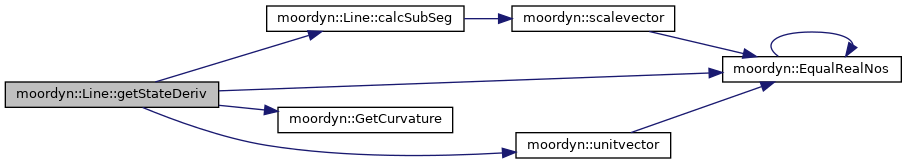

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Deserialize()

uint64_t * moordyn::Line::Deserialize ( const uint64_t * data )

virtual

Unpack the data to restore the Serialized information.

This is the inverse of Serialize(void)

Parameters

data	The packed data

Returns: A pointer to the end of the file, for debugging purposes

Implements moordyn::io::IO.

Here is the call graph for this function:

◆ enabledPb()

bool moordyn::Line::enabledPb ( ) const

inline

Check if pressure bending forces are considered.

Returns: true if pressure bending forces are considered, false otherwise

◆ enablePb()

void moordyn::Line::enablePb ( )

inline

Enable the pressure bending forces (disabled by default)

The internal pressure can be provided at each node by calling ::internalPress(), while the external pressure is computed as the hydrostatic pressure plus the dynamic pressure (see moordyn::Waves::getWaveKinLine()).

If no internal pressure is provided, zeros will be considered.

◆ getConstantEA()

moordyn::real moordyn::Line::getConstantEA ( ) const

inline

Get the constant stiffness of the line.

This value is useless if non-linear stiffness is considered

Returns: The static stiffness EA value

See also: ::IsConstantEA()

◆ getDrag()

std::pair<real, real> moordyn::Line::getDrag ( ) const

inline

Get the drag coefficients.

Returns: The normal (transversal) and tangential (axial) drag coefficients

◆ getElasticModel()

elastic_model moordyn::Line::getElasticModel ( ) const

inline

Get the elastic model used by the line.

Returns: The elastic model. See ::elastic_model

◆ getEndSegmentMoment()

vec moordyn::Line::getEndSegmentMoment	(	EndPoints	end_point,
		EndPoints	rod_end_point
	)		const

Get the bending moment at the end point.

The bending moment is defined as $\bar{r} \frac{E I}{\vert \bar{r} \vert^2}$ , with $\bar{r}$ the vector joining the endpoint and the next line node

This method is already taking into account the line and rod end points to appropriately set the sign of the resulting moment

Parameters

end_point	Either ENDPOINT_B or ENDPOINT_A
rod_end_point	Either ENDPOINT_B or ENDPOINT_A

Returns: The moment vector

Exceptions

invalid_value_error If either end_point or rod_end_point are not valid end point qualifiers

Here is the call graph for this function:

◆ getEndStuff()

void moordyn::Line::getEndStuff	(	vec &	Fnet_out,
		vec &	Moment_out,
		mat &	M_out,
		EndPoints	end_point
	)		const

inline

Get the force, moment and mass at the line endpoint.

Parameters

Fnet_out	The output force vector
Moment_out	The output moment vector
M_out	The output mass matrix
end_point	Either ENDPOINT_TOP or ENDPOINT_BOTTOM

Exceptions

invalid_value_error If end_point is not a valid end point qualifier

◆ getFASTtens()

void moordyn::Line::getFASTtens	(	float *	FairHTen,
		float *	FairVTen,
		float *	AnchHTen,
		float *	AnchVTen
	)		const

inline

Get the tensions at the fairlead and anchor in a FASTv7 friendly way.

Parameters

FairHTen	Horizontal tension on the fairlead
FairVTen	Vertical tension on the fairlead
AnchHTen	Horizontal tension on the anchor
AnchVTen	Vertical tension on the anchor

◆ GetLineOutput()

real moordyn::Line::GetLineOutput ( OutChanProps outChan )

Get line output.

This function is useful when outputs are set in the line properties

Parameters

outChan The output channel/field

Returns: The output value, 0.0 if a non-valid field is set

Here is the call graph for this function:

◆ getN()

unsigned int moordyn::Line::getN ( ) const

inline

Number of segments.

The number of nodes can be computed as moordyn::Line::getN() + 1

Returns: The number of segments, moordyn::Line::N

Here is the caller graph for this function:

◆ getNodeBendStiff()

const vec& moordyn::Line::getNodeBendStiff ( unsigned int i ) const

inline

Get the tension on a node, including the internal line damping.

If it is an inner node, the average of the tension at the surrounding segments is provided. If the node is a line-end, the associated ending segment tension is provided

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeCoordinates()

std::vector<vec> moordyn::Line::getNodeCoordinates ( ) const

inline

Get the array of coordinates of all nodes along the line.

Returns: The positions array

◆ getNodeCurv()

const real& moordyn::Line::getNodeCurv ( unsigned int i ) const

inline

Get the line curvature at a node position.

Parameters

i	The line node index

Returns: The line curvature (1 / m)

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

Note: The curvature is only computed if bending stiffness (moordyn::Line::EI) is not zero. Otherwise the curvature of every single node will be zero.

◆ getNodeDrag()

const vec moordyn::Line::getNodeDrag ( unsigned int i ) const

inline

Get the drag force acting on the node.

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeForce()

const vec& moordyn::Line::getNodeForce ( unsigned int i ) const

inline

Get the net force on a node.

The net force is the total force acting over a line node.

To get the different components of the force use ::getNodeTen() , ::getNodeBendStiff() , ::getNodeWeight() , ::getNodeDrag() , ::getNodeFroudeKrilov() and ::getNodeSeaBedForce()

Note: The net force is not the sum of all the components that you cat extract from the API. For instance, the tension contribution on the internal nodes is the difference between the tensions of the adjacent segments, while ::getNodeTen() is returning the average.

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

Here is the caller graph for this function:

◆ getNodeFroudeKrilov()

const vec moordyn::Line::getNodeFroudeKrilov ( unsigned int i ) const

inline

Get the Froude-Krilov force acting on the node.

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeM()

const mat& moordyn::Line::getNodeM ( unsigned int i ) const

inline

Get the mass and added mass matrix.

Parameters

i	The line node index

Returns: The mass matrix

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodePos()

const vec& moordyn::Line::getNodePos ( unsigned int i ) const

inline

Get the position of a node.

Parameters

i	The line node index

Returns: The position

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeSeabedForce()

const vec moordyn::Line::getNodeSeabedForce ( unsigned int i ) const

inline

Get the sea bed reaction force acting on the node.

This is eventually including the friction force

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeTen()

const vec moordyn::Line::getNodeTen ( unsigned int i ) const

inline

Get the tension on a node, including the internal line damping.

If it is an inner node, the average of the tension at the surrounding segments is provided. If the node is a line-end, the associated ending segment tension is provided. This does not account for the direction of pull. In the calculation of Fnet for the node, the direction of pull is accounted for.

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

Here is the caller graph for this function:

◆ getNodeVel()

const vec& moordyn::Line::getNodeVel ( unsigned int i ) const

inline

Get the velocity of a node.

Parameters

i	The line node index

Returns: The velocity

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getNodeWeight()

const vec& moordyn::Line::getNodeWeight ( unsigned int i ) const

inline

Get the weight and bouyancy force acting on the node.

Parameters

i	The line node index

Returns: The tension

Exceptions

invalid_value_error If the node index i is bigger than the number of nodes, moordyn::Line::N + 1

◆ getStateDeriv()

void moordyn::Line::getStateDeriv ( InstanceStateVarView drdt )

virtual

Calculate forces and get the derivative of the line's states.

Parameters

drdt	Output state derivatives

Exceptions

nan_error If nan values are detected in any node position

Implements moordyn::Instance.

Here is the call graph for this function:

◆ getUnstretchedLength()

moordyn::real moordyn::Line::getUnstretchedLength ( ) const

inline

Get the unstretched length of the line.

Returns: The unstretched length, moordyn::Line::UnstrLen

◆ getVTK()

const leanvtk::VTPWriter* moordyn::Line::getVTK ( ) const

inline

Get the VTK writer.

This function is useful for writing multiblock .vtm files

Returns: The VTK .vtu writer

◆ initialize() [1/2]

void moordyn::Line::initialize ( )

Initialize the line object.

Note: Becasue Line.hpp is the only function that calls this, no state vectors need to be returned. This is different from the structure of the other objects initialize functions.

Exceptions

moordyn::output_file_error	If an outfile has been provided, but it cannot be written
invalid_value_error	If there is no enough water depth

Here is the call graph for this function:

◆ initialize() [2/2]

void moordyn::Line::initialize ( InstanceStateVarView state )

inlinevirtual

Sets the initial line state.

Parameters

state The line state for initializing (see Line::setState for the state structure0)

Note: This calls Line::Initialize()

Implements moordyn::Instance.

◆ isConstantEA()

bool moordyn::Line::isConstantEA ( ) const

inline

Get whether the line is governed by a non-linear stiffness or a constant one.

Returns: true if the stiffness of the line is constant, false if a non-linear stiffness has been set

◆ saveVTK()

void moordyn::Line::saveVTK ( const char * filename )

Save the line on a VTK (.vtp) file.

Parameters

filename The output file name

Exceptions

output_file_error If If the file cannot be saved

Here is the call graph for this function:

◆ scaleDrag()

void moordyn::Line::scaleDrag ( real scaler )

inline

Scale the drag coefficients.

Parameters

scaler The drag coefficients scale factor

◆ Serialize()

std::vector< uint64_t > moordyn::Line::Serialize ( void )

virtual

Produce the packed data to be saved.

The produced data can be used afterwards to restore the saved information afterwards calling Deserialize(void).

Thus, this function is not processing the information that is extracted from the definition file

Returns: The packed data

Implements moordyn::io::IO.

Here is the call graph for this function:

◆ setConstantEA()

void moordyn::Line::setConstantEA ( moordyn::real EA_in )

inline

Set the constant stiffness of the line.

This value is useless if non-linear stiffness is considered

Parameters

EA	The constant axial stiffness EA value (N)

See also: ::IsConstantEA()

◆ setDrag()

void moordyn::Line::setDrag	(	real	cdn,
		real	cdt
	)

inline

Set the drag coefficients.

Parameters

cdn	Normal (transversal) coefficient
cdt	tangential (axial) coefficient

◆ setEndKinematics()

void moordyn::Line::setEndKinematics	(	vec	r,
		vec	rd,
		EndPoints	end_point
	)

Set the position and velocity of an end point.

Parameters

r	Position
rd	Velocity
end_point	Either ENDPOINT_TOP or ENDPOINT_BOTTOM

Exceptions

invalid_value_error If end_point is not a valid end point qualifier

◆ setEndOrientation()

void moordyn::Line::setEndOrientation	(	vec	q,
		EndPoints	end_point,
		EndPoints	rod_end_point
	)

set end node unit vector

This method is called by an eventually attached Rod, only applicable for bending stiffness

Parameters

q	The direction unit vector
end_point	Either ENDPOINT_B or ENDPOINT_A
rod_end_point	Either ENDPOINT_B or ENDPOINT_A

Exceptions

invalid_value_error If either end_point or rod_end_point are not valid end point qualifiers

◆ setInitialTmax()

void moordyn::Line::setInitialTmax ( moordyn::real Tmax0 )

inline

Set the initial Tmax values.

Parameters

Tmax0 Initial Tmax value

◆ setInitialTmean()

void moordyn::Line::setInitialTmean ( moordyn::real Tmean0 )

inline

Set the initial mean tension values.

Parameters

Tmean0 Initial Tmean value

◆ setPin()

void moordyn::Line::setPin ( std::vector< real > p )

Set the internal pressure at each node of the line.

If this is not provided, the last stored values (zero by default) will be considered.

This function is useless unless ::enablePb() is called.

Parameters

p	The pressure values (Pa) at each node

Exceptions

invalid_value_error If p has wrong size

◆ setState()

void moordyn::Line::setState ( const InstanceStateVarView r )

virtual

Set the line state.

Parameters

r	The line state matrix. See Line::setState in Line.cpp for structure

Note: End node kinematics are not handled here

See also: moordyn::Line::setEndState

Implements moordyn::Instance.

◆ setTime()

void moordyn::Line::setTime ( real time )

inline

Set the line simulation time.

Parameters

time	Simulation time

◆ setUnstretchedLength()

void moordyn::Line::setUnstretchedLength ( const moordyn::real len )

inline

Set the unstretched length of the line.

This function is consistently changing the unstretched length of each segment, moordyn::Line::l

Parameters

len	The unstretched length, moordyn::Line::UnstrLen

Note: This function should be called after moordyn::Line::initialize()

Warning: The lines damping is not changed, which might affect the stability

◆ setUnstretchedLengthVel()

void moordyn::Line::setUnstretchedLengthVel ( const moordyn::real v )

inline

Set the unstretched length rate of change of the line.

Parameters

v	The unstretched length rate of change, moordyn::Line::UnstrLend

See also: moordyn::Line::setUnstretchedLength()

◆ setup()

void moordyn::Line::setup	(	int	number,
		LineProps *	props,
		real	l,
		unsigned int	n,
		EnvCondRef	env_in,
		shared_ptr< ofstream >	outfile,
		string	channels,
		real	dtM0
	)

Setup a line.

Parameters

number	Line number
props	Line properties
l	Unstretched line length
n	Number of segments
env_in	Global struct that holds environmental settings
outfile	The outfile where information shall be written
channels	The channels/fields that shall be printed in the file
dtM0	moordyn internal timestep. Used in VIV

Here is the caller graph for this function:

◆ setWaves()

void moordyn::Line::setWaves	(	moordyn::WavesRef	waves_in,
		moordyn::SeafloorRef	seafloor_in
	)

inline

Set the environmental data.

Parameters

waves_in	Global Waves object
seafloor_in	Global 3D Seafloor object

◆ stateDims()

const size_t moordyn::Line::stateDims ( ) const

inlinevirtual

Get the dimension of the state variable.

Returns: 3 components for positions and 3 components for velocities, i.e. 6 components. An additional component is returned if the VIV model or viscoelastic model is activated.

Note: If VIV and vsicoelastic, return 8 if VIV xor viscoelastic, return 7 if normal, return 6 See comments in Line::setState to see the line state structure

Warning: This function shall be called after ::setup()

Reimplemented from moordyn::Instance.

◆ stateN()

const size_t moordyn::Line::stateN ( ) const

inlinevirtual

Get the number of state variables required by this instance.

Returns: The number of internal nodes if no viscoelastic model otherwise, return the number of segments

Note: See comments in Line::setState to see the line state structure

Warning: This function shall be called after ::setup()

Reimplemented from moordyn::Instance.

◆ storeWaterKin()

void moordyn::Line::storeWaterKin	(	real	dt,
		std::vector< std::vector< moordyn::real >>	zeta,
		std::vector< std::vector< moordyn::real >>	f,
		std::vector< std::vector< vec >>	u,
		std::vector< std::vector< vec >>	ud
	)

store wave/current kinematics time series for this line

This is used when nodal approaches are selected, i.e. WaveKin = WAVES_FFT_NODE or WAVES_NODE, Currents = CURRENTS_STEADY_NODE or CURRENTS_DYNAMIC_NODE

Parameters

dt	Time step
zeta	The wave elevations
f	The fluid fractions
u	The flow velocity
ud	The flow acceleration

Exceptions

invalid_value_error	If `zeta`, `f`, `u` and `ud` have not the same size, in both dimensions.
invalid_value_error	If the length of `zeta`, `f`, `u` or `ud` is not equal to moordyn::Line::getN() + 1

Note: Working in progress

◆ updateUnstretchedLength()

void moordyn::Line::updateUnstretchedLength ( const moordyn::real dt = 0.0 )

inline

Update the unstretched length of the line, according to the velocity.

Parameters

dt	The time step. If zero, the initial unstretched length is set

Note: This function should be called after moordyn::Line::initialize()

Warning: The lines damping is not changed, which might affect the stability

Member Data Documentation

◆ lineId

size_t moordyn::Line::lineId

a line id which is guaranteed to be contiguous up from zero for the lines

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Line.hpp
/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Line.cpp

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Line()

Member Function Documentation

◆ calcSubSeg()

◆ Deserialize()

◆ enabledPb()

◆ enablePb()

◆ getConstantEA()

◆ getDrag()

◆ getElasticModel()

◆ getEndSegmentMoment()

◆ getEndStuff()

◆ getFASTtens()

◆ GetLineOutput()

◆ getN()

◆ getNodeBendStiff()

◆ getNodeCoordinates()

◆ getNodeCurv()

◆ getNodeDrag()

◆ getNodeForce()

◆ getNodeFroudeKrilov()

◆ getNodeM()

◆ getNodePos()

◆ getNodeSeabedForce()

◆ getNodeTen()

◆ getNodeVel()

◆ getNodeWeight()

◆ getStateDeriv()

◆ getUnstretchedLength()

◆ getVTK()

◆ initialize() [1/2]

◆ initialize() [2/2]

◆ isConstantEA()

◆ saveVTK()

◆ scaleDrag()

◆ Serialize()

◆ setConstantEA()

◆ setDrag()

◆ setEndKinematics()

◆ setEndOrientation()

◆ setInitialTmax()

◆ setInitialTmean()

◆ setPin()

◆ setState()

◆ setTime()

◆ setUnstretchedLength()

◆ setUnstretchedLengthVel()

◆ setup()

◆ setWaves()

◆ stateDims()

◆ stateN()

◆ storeWaterKin()

◆ updateUnstretchedLength()

Member Data Documentation

◆ lineId
