A generic instance. More...

#include <Instance.hpp>

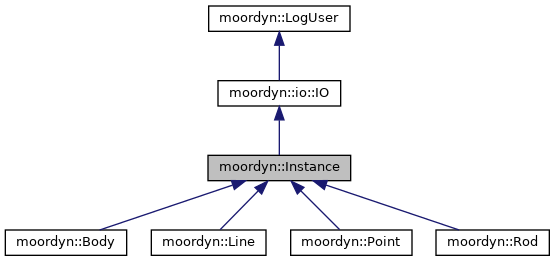

Inheritance diagram for moordyn::Instance:

[legend]

Collaboration diagram for moordyn::Instance:

[legend]

Public Member Functions
	Instance (moordyn::Log *log)
	Costructor. More...

virtual	~Instance ()=default
	Destructor.

const size_t	id () const
	Get the unique identifier of this instance. More...

virtual void	initialize (InstanceStateVarView r)=0
	Initialize a free instance. More...

virtual void	setState (const InstanceStateVarView r)=0
	Set the state. More...

virtual void	getStateDeriv (InstanceStateVarView drdt)=0
	Calculate forces and get the derivative of the states. More...

virtual const size_t	stateN () const
	Get the number of state variables required by this instance. More...

virtual const size_t	stateDims () const
	Get the dimension of the state variable. More...

Public Member Functions inherited from moordyn::io::IO
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

virtual std::vector< uint64_t >	Serialize (void)=0
	Produce the packed data to be saved. More...

virtual uint64_t *	Deserialize (const uint64_t *data)=0
	Unpack the data to restore the Serialized information. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Additional Inherited Members
Protected Member Functions inherited from moordyn::io::IO
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

A generic instance.

Constructor & Destructor Documentation

◆ Instance()

moordyn::Instance::Instance ( moordyn::Log * log )

Costructor.

Parameters

log	Logging handler defining where/how results should be logged.

Member Function Documentation

◆ getStateDeriv()

virtual void moordyn::Instance::getStateDeriv ( InstanceStateVarView drdt )

pure virtual

Calculate forces and get the derivative of the states.

Parameters

drdt	Output state derivatives

Exceptions

nan_error If nan values are detected in any node position

Implemented in moordyn::Rod, moordyn::Point, moordyn::Line, and moordyn::Body.

◆ id()

const size_t moordyn::Instance::id ( ) const

inline

Get the unique identifier of this instance.

The unique identifier is a growing index which identifies every single created instance. Even if an instance is removed, the index will remain taken. That applies even for multiple instances generation.

Returns: The unique identifier

Warning: It cannot be assumed that the first taken index will be 0; It cannot be assumed that consequtive ids will be assigned

Here is the caller graph for this function:

◆ initialize()

virtual void moordyn::Instance::initialize ( InstanceStateVarView r )

pure virtual

Initialize a free instance.

Parameters

r	The output state variable

Exceptions

moordyn::invalid_value_error If the instance does not have free states. e.g. a coupled body controlled from outside

Implemented in moordyn::Line, moordyn::Rod, moordyn::Point, and moordyn::Body.

◆ setState()

virtual void moordyn::Instance::setState ( const InstanceStateVarView r )

pure virtual

Set the state.

Parameters

r	The state variable

Implemented in moordyn::Rod, moordyn::Point, moordyn::Line, and moordyn::Body.

◆ stateDims()

virtual const size_t moordyn::Instance::stateDims ( ) const

inlinevirtual

Get the dimension of the state variable.

This can be seen as the number of columns on the state variables holder.

Returns: The dimension of the state variable

Reimplemented in moordyn::Rod, moordyn::Point, moordyn::Line, and moordyn::Body.

Here is the caller graph for this function:

◆ stateN()

virtual const size_t moordyn::Instance::stateN ( ) const

inlinevirtual

Get the number of state variables required by this instance.

This can be seen as the number of rows on the state variables holder.

Returns: The number of state variables

Reimplemented in moordyn::Rod, moordyn::Point, moordyn::Line, and moordyn::Body.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Instance.hpp
/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Instance.cpp
