A base class for all the entities that must save/load data to/from disk. More...

#include <IO.hpp>

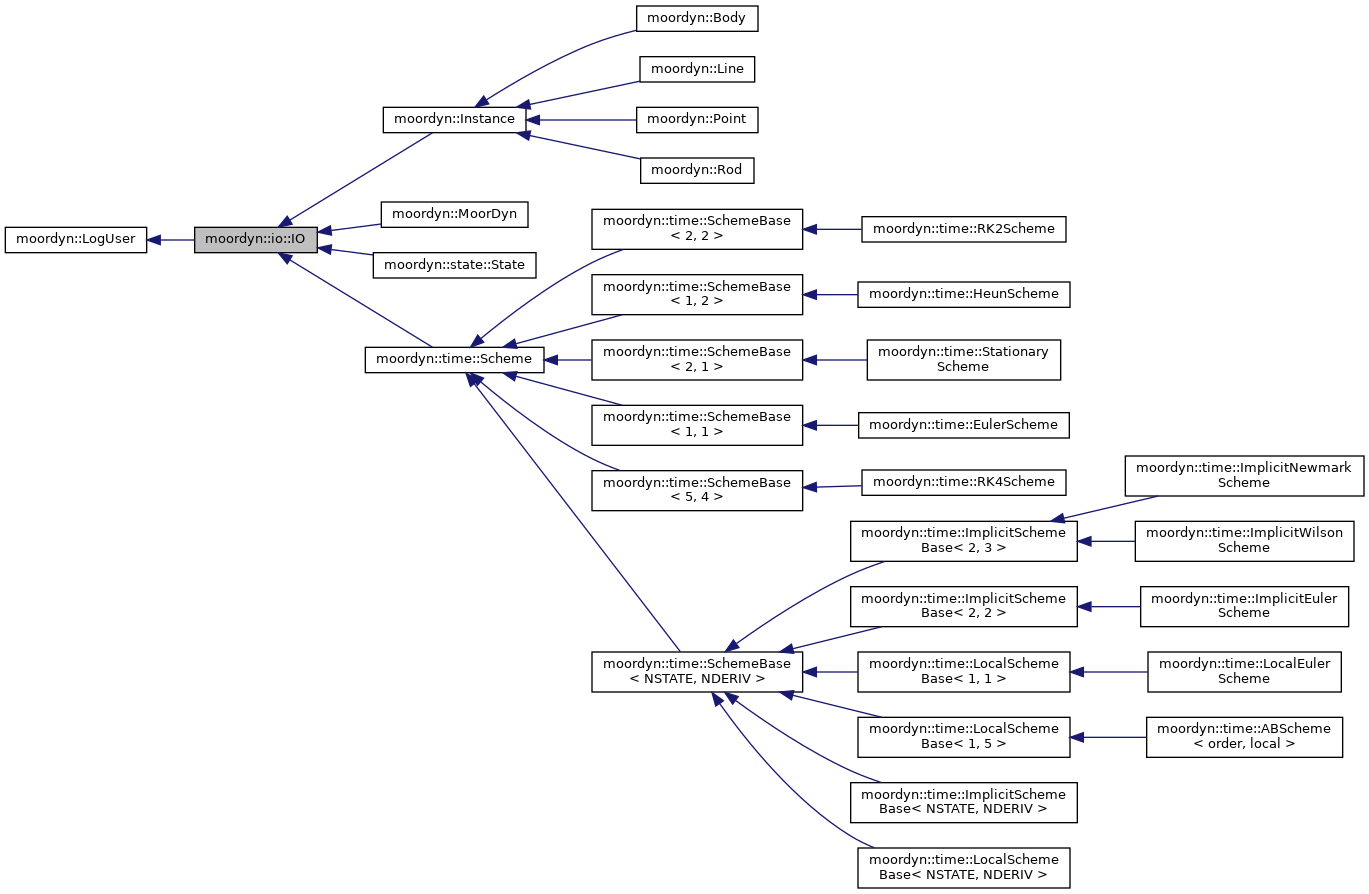

Inheritance diagram for moordyn::io::IO:

[legend]

Collaboration diagram for moordyn::io::IO:

Public Member Functions
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

virtual std::vector< uint64_t >	Serialize (void)=0
	Produce the packed data to be saved. More...

virtual uint64_t *	Deserialize (const uint64_t *data)=0
	Unpack the data to restore the Serialized information. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Protected Member Functions
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Additional Inherited Members
Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

A base class for all the entities that must save/load data to/from disk.

Note: Since this class already publicly inherits moordyn::LogUser, all the classes inheriting this class do not require inheriting also LogUser

Constructor & Destructor Documentation

◆ IO()

moordyn::io::IO::IO ( moordyn::Log * log )

Costructor.

Parameters

log	Logging handler

Member Function Documentation

◆ Deserialize() [1/17]

virtual uint64_t* moordyn::io::IO::Deserialize ( const uint64_t * data )

pure virtual

Unpack the data to restore the Serialized information.

This is the function that each inherited class must implement, and should be the inverse of Serialize(void)

Parameters

data	The packed data

Returns: A pointer to the end of the file, for debugging purposes

Implemented in moordyn::time::ABScheme< order, local >, moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, moordyn::time::SchemeBase< 5, 4 >, moordyn::state::State, moordyn::Rod, moordyn::Point, moordyn::MoorDyn, moordyn::Line, and moordyn::Body.

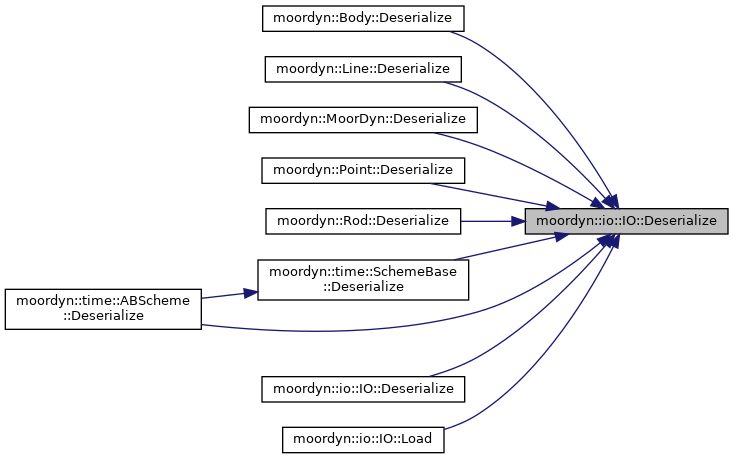

Here is the caller graph for this function:

◆ Deserialize() [2/17]

uint64_t* moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &	out
	)

inlineprotected

Unpack an arbitrarily large matrix.

Parameters

in	The pointer to the next unread value
out	The unpacked vector

Returns: The new pointer to the remaining data to be read

◆ Deserialize() [3/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		int64_t &	out
	)

protected

Unpack a loaded integer.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [4/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		mat &	out
	)

protected

Unpack a loaded 3x3 matrix.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [5/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		mat6 &	out
	)

protected

Unpack a loaded 6x6 matrix.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [6/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		quaternion &	out
	)

protected

Unpack a loaded quaternion.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [7/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		real &	out
	)

protected

Unpack a loaded floating point number.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [8/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< mat > &	out
	)

protected

Unpack a loaded list of 3x3 matrices.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [9/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< mat6 > &	out
	)

protected

Unpack a loaded list of 6x6 matrices.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [10/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< real > &	out
	)

protected

Unpack a loaded list of floating point numbers.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [11/17]

template<typename T >

uint64_t* moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< std::vector< T >> &	out
	)

inlineprotected

Unpack a loaded list of lists.

This function might works recursively

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

◆ Deserialize() [12/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< vec > &	out
	)

protected

Unpack a loaded list of 3D vectors.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [13/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		std::vector< vec6 > &	out
	)

protected

Unpack a loaded list of 6D vectors.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [14/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		uint64_t &	out
	)

protected

Unpack a loaded unsigned integer.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

◆ Deserialize() [15/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		vec &	out
	)

protected

Unpack a loaded 3D vector.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [16/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		vec6 &	out
	)

protected

Unpack a loaded 6D vector.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Deserialize() [17/17]

uint64_t * moordyn::io::IO::Deserialize	(	const uint64_t *	in,
		XYZQuat &	out
	)

protected

Unpack a loaded XYZQuat.

Parameters

in	The pointer to the next unread value
out	The unpacked value

Returns: The new pointer to the remaining data to be read

Here is the call graph for this function:

◆ Load()

void moordyn::io::IO::Load ( const std::string filepath )

Loads the entity from a file.

It is the inverse of Save(filepath)

Parameters

filepath The output file path

Here is the call graph for this function:

◆ LoadFile()

std::tuple< uint64_t, uint64_t * > moordyn::io::IO::LoadFile ( const std::string filepath ) const

protected

Open an input file and load the data.

Parameters

filepath The input file path

Returns: the size of the data into the file and the allocated memory with the data inside. Remember to call free() on the returned pointer

Here is the caller graph for this function:

◆ MakeFile()

ofstream moordyn::io::IO::MakeFile ( const std::string filepath ) const

protected

Create an output file and write the MoorDyn magic header.

Parameters

filepath The output file path

Here is the caller graph for this function:

◆ Save()

void moordyn::io::IO::Save ( const std::string filepath )

Save the entity into a file.

It is of course possible to save each entity in a separate file. However, since this function is just redirecting the work to save(void), which might produce the data to save recursively, actually the whole system can be saved in the same file

Parameters

filepath The output file path

Here is the call graph for this function:

◆ Serialize() [1/17]

std::vector<uint64_t> moordyn::io::IO::Serialize ( const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > & l )

inlineprotected

Pack an arbitrarily large matrix.

Parameters

l	The matrix

Returns: The packed list

◆ Serialize() [2/17]

uint64_t moordyn::io::IO::Serialize ( const int64_t & i )

protected

Pack an integer to make it writable.

Parameters

i	The integer number

Returns: The packed number

Here is the call graph for this function:

◆ Serialize() [3/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const mat & m )

protected

Pack a 3x3 matrix to make it writable.

Parameters

m	The matrix

Returns: The packed matrix

Here is the call graph for this function:

◆ Serialize() [4/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const mat6 & m )

protected

Pack a 6x6 matrix to make it writable.

Parameters

m	The matrix

Returns: The packed matrix

Here is the call graph for this function:

◆ Serialize() [5/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const quaternion & m )

protected

Pack a quaternion to make it writable.

Parameters

m	The quaternion

Returns: The packed quaternion

Here is the call graph for this function:

◆ Serialize() [6/17]

uint64_t moordyn::io::IO::Serialize ( const real & f )

protected

Pack a float to make it writable.

Parameters

f	The float number

Returns: The packed number

Here is the call graph for this function:

◆ Serialize() [7/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const std::vector< mat > & l )

protected

Pack a list of 3x3 matrices to make it writable.

Parameters

l The list

Returns: The packed list

Here is the call graph for this function:

◆ Serialize() [8/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const std::vector< mat6 > & l )

protected

Pack a list of 6x6 matrices to make it writable.

Parameters

l The list

Returns: The packed list

Here is the call graph for this function:

◆ Serialize() [9/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const std::vector< real > & l )

protected

Pack a list of floating point numbers to make it writable.

Parameters

l The list

Returns: The packed list

Here is the call graph for this function:

◆ Serialize() [10/17]

template<typename T >

std::vector<uint64_t> moordyn::io::IO::Serialize ( const std::vector< std::vector< T >> & l )

inlineprotected

Pack a list of lists to make it writable This function might act recursively.

Parameters

l The list

Returns: The packed list

◆ Serialize() [11/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const std::vector< vec > & l )

protected

Pack a list of 3D vectors to make it writable.

Parameters

l The list

Returns: The packed list

Here is the call graph for this function:

◆ Serialize() [12/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const std::vector< vec6 > & l )

protected

Pack a list of 6D vectors to make it writable.

Parameters

l The list

Returns: The packed list

Here is the call graph for this function:

◆ Serialize() [13/17]

uint64_t moordyn::io::IO::Serialize ( const uint64_t & i )

protected

Pack an unsigned integer to make it writable.

Parameters

i	The unsigned integer number

Returns: The packed number

◆ Serialize() [14/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const vec & m )

protected

Pack a 3D vector to make it writable.

Parameters

m	The matrix

Returns: The packed matrix

Here is the call graph for this function:

◆ Serialize() [15/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const vec6 & m )

protected

Pack a 6D vector to make it writable.

Parameters

m	The matrix

Returns: The packed matrix

Here is the call graph for this function:

◆ Serialize() [16/17]

std::vector< uint64_t > moordyn::io::IO::Serialize ( const XYZQuat & m )

protected

Pack an XYZQuat to make it writable.

Parameters

m	The XYZQuat

Returns: The packed XYZQuat

Here is the call graph for this function:

◆ Serialize() [17/17]

virtual std::vector<uint64_t> moordyn::io::IO::Serialize ( void )

pure virtual

Produce the packed data to be saved.

The produced data can be used afterwards to restore the saved information afterwards calling Deserialize(void).

This is the function that each inherited class must implement

Returns: The packed data

Implemented in moordyn::time::ABScheme< order, local >, moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, moordyn::time::SchemeBase< 5, 4 >, moordyn::state::State, moordyn::Rod, moordyn::Point, moordyn::MoorDyn, moordyn::Line, and moordyn::Body.

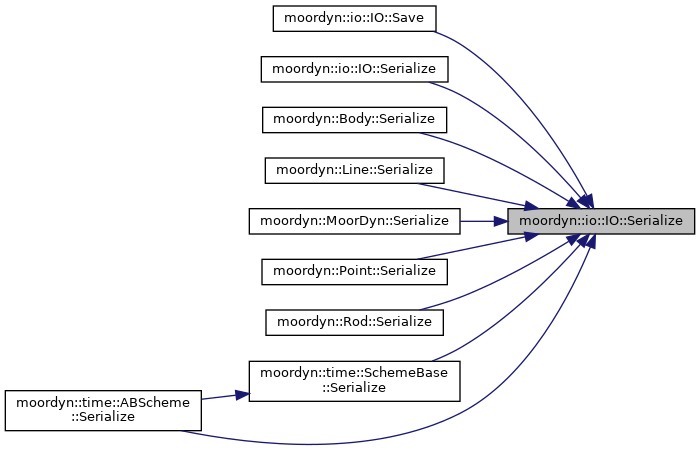

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/IO.hpp
/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/IO.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IO()

Member Function Documentation

◆ Deserialize() [1/17]

◆ Deserialize() [2/17]

◆ Deserialize() [3/17]

◆ Deserialize() [4/17]

◆ Deserialize() [5/17]

◆ Deserialize() [6/17]

◆ Deserialize() [7/17]

◆ Deserialize() [8/17]

◆ Deserialize() [9/17]

◆ Deserialize() [10/17]

◆ Deserialize() [11/17]

◆ Deserialize() [12/17]

◆ Deserialize() [13/17]

◆ Deserialize() [14/17]

◆ Deserialize() [15/17]

◆ Deserialize() [16/17]

◆ Deserialize() [17/17]

◆ Load()

◆ LoadFile()

◆ MakeFile()

◆ Save()

◆ Serialize() [1/17]

◆ Serialize() [2/17]

◆ Serialize() [3/17]

◆ Serialize() [4/17]

◆ Serialize() [5/17]

◆ Serialize() [6/17]

◆ Serialize() [7/17]

◆ Serialize() [8/17]

◆ Serialize() [9/17]

◆ Serialize() [10/17]

◆ Serialize() [11/17]

◆ Serialize() [12/17]

◆ Serialize() [13/17]

◆ Serialize() [14/17]

◆ Serialize() [15/17]

◆ Serialize() [16/17]

◆ Serialize() [17/17]
