Adam-Bashforth time schemes collection. More...

#include <Time.hpp>

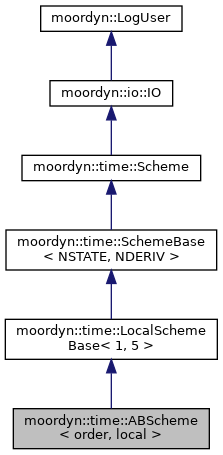

Inheritance diagram for moordyn::time::ABScheme< order, local >:

[legend]

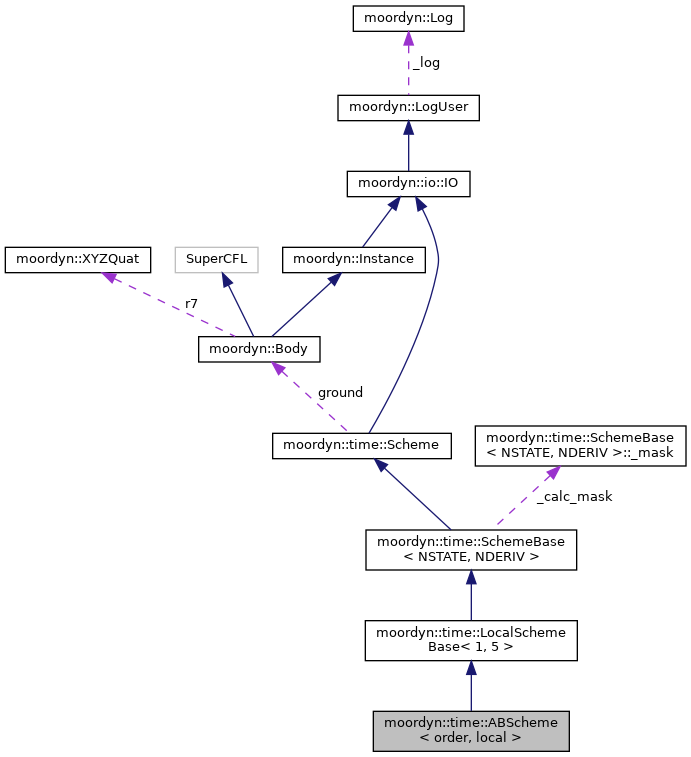

Collaboration diagram for moordyn::time::ABScheme< order, local >:

[legend]

Public Member Functions
	ABScheme (moordyn::Log *log, WavesRef waves)
	Constructor. More...

	~ABScheme ()
	Destructor.

virtual void	Step (real &dt)
	Run a time step. More...

virtual std::vector< uint64_t >	Serialize (void)
	Produce the packed data to be saved. More...

virtual uint64_t *	Deserialize (const uint64_t *data)
	Unpack the data to restore the Serialized information. More...

Public Member Functions inherited from moordyn::time::LocalSchemeBase< 1, 5 >
virtual	~LocalSchemeBase ()
	Destructor.

void	Init ()
	Create an initial state for all the entities. More...

virtual void	SetState (const state::State &state, unsigned int i=0)
	Resume the simulation from the stationary solution. More...

Public Member Functions inherited from moordyn::time::SchemeBase< NSTATE, NDERIV >
virtual	~SchemeBase ()
	Destructor.

virtual void	AddLine (Line *obj)
	Add a line. More...

virtual unsigned int	RemoveLine (Line *obj)
	Remove a line. More...

virtual void	AddPoint (Point *obj)
	Add a point. More...

virtual unsigned int	RemovePoint (Point *obj)
	Remove a point. More...

virtual void	AddRod (Rod *obj)
	Add a rod. More...

virtual unsigned int	RemoveRod (Rod *obj)
	Remove a rod. More...

virtual void	AddBody (Body *obj)
	Add a body. More...

virtual unsigned int	RemoveBody (Body *obj)
	Remove a body. More...

virtual void	SaveState (const std::string filepath, unsigned int i=0)
	Save the system state on a file. More...

virtual void	LoadState (const std::string filepath, unsigned int i=0)
	Load the system state from a file. More...

state::State *	rd (unsigned int i=0)
	Get the state derivative. More...

state::State *	r (unsigned int i=0)
	Get the state. More...

state::State	GetState (unsigned int i=0)
	Get the state variable. More...

Public Member Functions inherited from moordyn::time::Scheme
virtual	~Scheme ()
	Destructor.

void	SetGround (Body *obj)
	Set the ground body. More...

std::string	GetName () const
	Get the name of the scheme. More...

real	GetTime () const
	Get the simulation time. More...

void	SetTime (const real &time)
	Set the simulation time. More...

real	GetCFL () const
	Get the CFL factor. More...

void	SetCFL (const real &cfl)
	Set the CFL factor. More...

void	Next ()
	Prepare everything for the next outer time step. More...

Public Member Functions inherited from moordyn::io::IO
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Additional Inherited Members
Protected Types inherited from moordyn::time::SchemeBase< NSTATE, NDERIV >
typedef struct moordyn::time::SchemeBase::_mask	mask
	A mask to determine which entities shall be computed. More...

Protected Member Functions inherited from moordyn::time::LocalSchemeBase< 1, 5 >
	LocalSchemeBase (moordyn::Log *log, moordyn::WavesRef waves)
	Costructor. More...

void	SetCalcMask (real &dt)
	Set the calculation mask. More...

Protected Member Functions inherited from moordyn::time::SchemeBase< NSTATE, NDERIV >
	SchemeBase (moordyn::Log *log, moordyn::WavesRef waves)
	Constructor. More...

void	Update (real t_local, unsigned int substep=0)
	Update all the entities to set the state. More...

void	CalcStateDeriv (unsigned int substep=0)
	Compute the time derivatives and store them. More...

Protected Member Functions inherited from moordyn::time::Scheme
	Scheme (moordyn::Log *log)
	Constructor. More...

Protected Member Functions inherited from moordyn::io::IO
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Protected Attributes inherited from moordyn::time::SchemeBase< NSTATE, NDERIV >
std::array< moordyn::state::State *, NSTATE >	_r
	The list of states.

std::array< moordyn::state::State *, NDERIV >	_rd
	The list of state derivatives.

std::shared_ptr< Waves >	waves
	The waves instance.

mask	_calc_mask
	The SchemeBase::CalcStateDeriv() mask.

Protected Attributes inherited from moordyn::time::Scheme
Body *	ground
	The ground body.

std::vector< Line * >	lines
	The lines.

std::vector< Point * >	points
	The points.

std::vector< Rod * >	rods
	The rods.

std::vector< Body * >	bodies
	The bodies.

std::string	name
	The scheme name.

real	t
	The simulation time.

real	t_local
	The local time, within the outer time step.

real	cfl
	Maximum CFL factor.

Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

template<unsigned int order, bool local>
class moordyn::time::ABScheme< order, local >

Adam-Bashforth time schemes collection.

The Adam-Bashforth method tries to increase the order of the integrator by using former derivatives. Thus it is requiring just a single derivative computation per time step

Actually, the 1st order and the 2nd order are the same schemes than the Euler's and Heun's ones

Constructor & Destructor Documentation

◆ ABScheme()

template<unsigned int order, bool local>

moordyn::time::ABScheme< order, local >::ABScheme	(	moordyn::Log *	log,
		moordyn::WavesRef	waves
	)

Constructor.

Parameters

log	Logging handler
waves	Waves instance

Member Function Documentation

◆ Deserialize()

template<unsigned int order, bool local>

virtual uint64_t* moordyn::time::ABScheme< order, local >::Deserialize ( const uint64_t * data )

inlinevirtual

Unpack the data to restore the Serialized information.

This is the function that each inherited class must implement, and should be the inverse of Serialize(void)

Parameters

data	The packed data

Returns: A pointer to the end of the file, for debugging purposes

Reimplemented from moordyn::time::SchemeBase< NSTATE, NDERIV >.

Here is the call graph for this function:

◆ Serialize()

template<unsigned int order, bool local>

virtual std::vector<uint64_t> moordyn::time::ABScheme< order, local >::Serialize ( void )

inlinevirtual

Produce the packed data to be saved.

The produced data can be used afterwards to restore the saved information afterwards calling Deserialize(void).

Returns: The packed data

Reimplemented from moordyn::time::SchemeBase< NSTATE, NDERIV >.

Here is the call graph for this function:

◆ Step()

template<unsigned int order, bool local>

void moordyn::time::ABScheme< order, local >::Step ( real & dt )

virtual

Run a time step.

This function is the one that must be specialized on each time scheme

Parameters

dt Time step

Reimplemented from moordyn::time::SchemeBase< NSTATE, NDERIV >.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Time.hpp
/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Time.cpp
