Time scheme abstraction. More...

#include <Time.hpp>

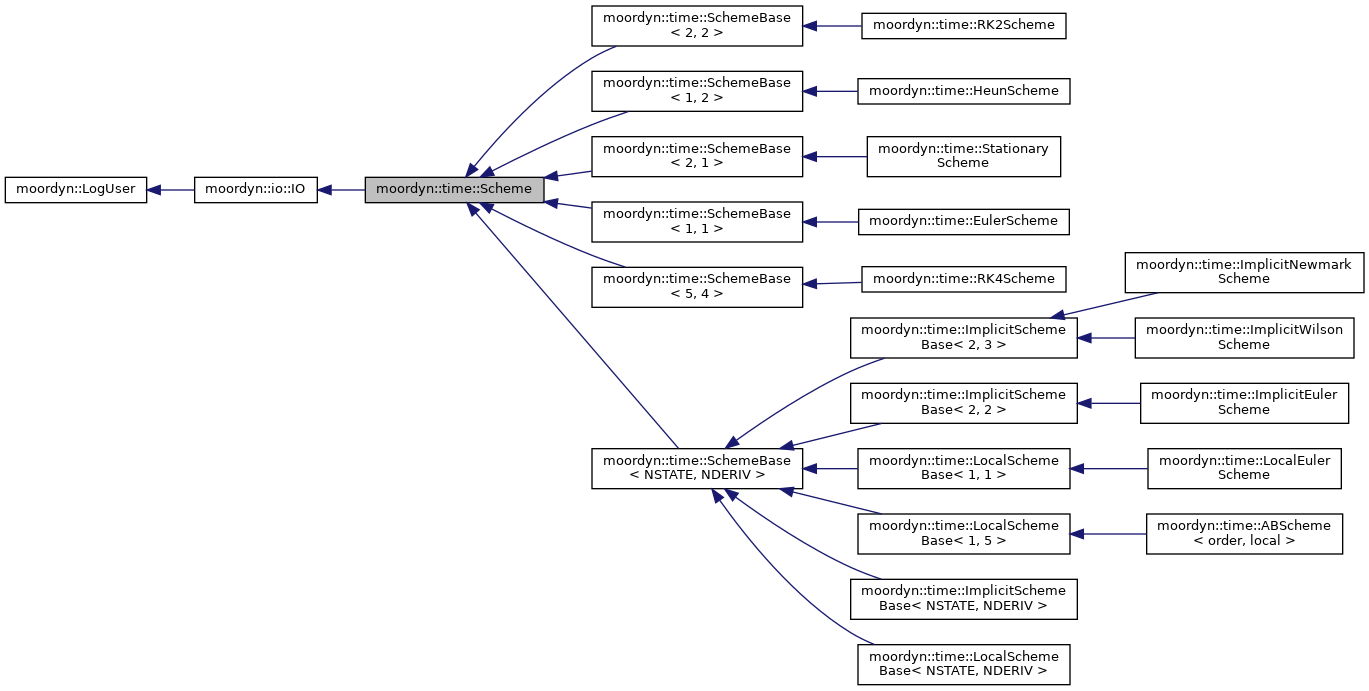

Inheritance diagram for moordyn::time::Scheme:

[legend]

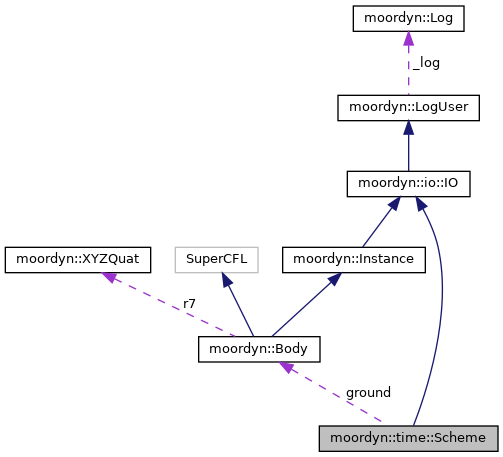

Collaboration diagram for moordyn::time::Scheme:

[legend]

Public Member Functions
virtual	~Scheme ()
	Destructor.

void	SetGround (Body *obj)
	Set the ground body. More...

virtual void	AddLine (Line *obj)
	Add a line. More...

virtual unsigned int	RemoveLine (Line *obj)
	Remove a line. More...

virtual void	AddPoint (Point *obj)
	Add a point. More...

virtual unsigned int	RemovePoint (Point *obj)
	Remove a point. More...

virtual void	AddRod (Rod *obj)
	Add a rod. More...

virtual unsigned int	RemoveRod (Rod *obj)
	Remove a rod. More...

virtual void	AddBody (Body *obj)
	Add a body. More...

virtual unsigned int	RemoveBody (Body *obj)
	Remove a body. More...

std::string	GetName () const
	Get the name of the scheme. More...

real	GetTime () const
	Get the simulation time. More...

void	SetTime (const real &time)
	Set the simulation time. More...

real	GetCFL () const
	Get the CFL factor. More...

void	SetCFL (const real &cfl)
	Set the CFL factor. More...

void	Next ()
	Prepare everything for the next outer time step. More...

virtual void	Init ()=0
	Create an initial state for all the entities. More...

virtual void	Step (real &dt)
	Run a time step. More...

virtual moordyn::state::State	GetState (unsigned int i=0)=0
	Get the state variable. More...

virtual void	SetState (const moordyn::state::State &state, unsigned int i=0)
	Resume the simulation from the stationary solution. More...

virtual void	SaveState (const std::string filepath, unsigned int i=0)
	Save the system state on a file. More...

virtual void	LoadState (const std::string filepath, unsigned int i=0)
	Load the system state from a file. More...

Public Member Functions inherited from moordyn::io::IO
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

virtual std::vector< uint64_t >	Serialize (void)=0
	Produce the packed data to be saved. More...

virtual uint64_t *	Deserialize (const uint64_t *data)=0
	Unpack the data to restore the Serialized information. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Protected Member Functions
	Scheme (moordyn::Log *log)
	Constructor. More...

Protected Member Functions inherited from moordyn::io::IO
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Protected Attributes
Body *	ground
	The ground body.

std::vector< Line * >	lines
	The lines.

std::vector< Point * >	points
	The points.

std::vector< Rod * >	rods
	The rods.

std::vector< Body * >	bodies
	The bodies.

std::string	name
	The scheme name.

real	t
	The simulation time.

real	t_local
	The local time, within the outer time step.

real	cfl
	Maximum CFL factor.

Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

Time scheme abstraction.

This class is helping mooring::MoorDyn to can consider every single time scheme in the very same way

Constructor & Destructor Documentation

◆ Scheme()

moordyn::time::Scheme::Scheme ( moordyn::Log * log )

inlineprotected

Constructor.

Parameters

log	Logging handler

Member Function Documentation

◆ AddBody()

virtual void moordyn::time::Scheme::AddBody ( Body * obj )

inlinevirtual

Add a body.

Parameters

obj The body

Exceptions

moordyn::invalid_value_error If it has been already registered

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ AddLine()

virtual void moordyn::time::Scheme::AddLine ( Line * obj )

inlinevirtual

Add a line.

Parameters

obj The line

Exceptions

moordyn::invalid_value_error If it has been already registered

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ AddPoint()

virtual void moordyn::time::Scheme::AddPoint ( Point * obj )

inlinevirtual

Add a point.

Parameters

obj The point

Exceptions

moordyn::invalid_value_error If it has been already registered

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ AddRod()

virtual void moordyn::time::Scheme::AddRod ( Rod * obj )

inlinevirtual

Add a rod.

Parameters

obj The rod

Exceptions

moordyn::invalid_value_error If it has been already registered

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ GetCFL()

real moordyn::time::Scheme::GetCFL ( ) const

inline

Get the CFL factor.

Returns: The CFL factor

◆ GetName()

std::string moordyn::time::Scheme::GetName ( ) const

inline

Get the name of the scheme.

Returns: The name

◆ GetState()

virtual moordyn::state::State moordyn::time::Scheme::GetState ( unsigned int i = 0 )

pure virtual

Get the state variable.

Parameters

i	The index of the state variable to take

Returns: The state variable

Implemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ GetTime()

real moordyn::time::Scheme::GetTime ( ) const

inline

Get the simulation time.

Returns: The time

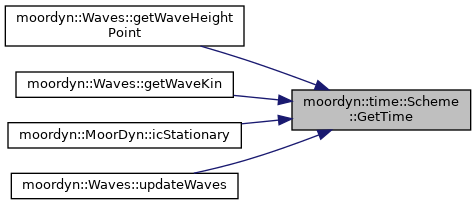

Here is the caller graph for this function:

◆ Init()

virtual void moordyn::time::Scheme::Init ( )

pure virtual

Create an initial state for all the entities.

Note: Just the first state is written. None of the following states, nor the derivatives are initialized in any way.; It is assumed that the coupled entities were already initialized

Implemented in moordyn::time::LocalSchemeBase< NSTATE, NDERIV >, moordyn::time::LocalSchemeBase< 1, 1 >, moordyn::time::LocalSchemeBase< 1, 5 >, moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ LoadState()

virtual void moordyn::time::Scheme::LoadState	(	const std::string	filepath,
		unsigned int	i = `0`
	)

inlinevirtual

Load the system state from a file.

Parameters

filepath	The output file path
i	The index of the state variable to overwrite

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

◆ Next()

void moordyn::time::Scheme::Next ( )

inline

Prepare everything for the next outer time step.

Always call this method before start calling Scheme::Step()

Here is the caller graph for this function:

◆ RemoveBody()

virtual unsigned int moordyn::time::Scheme::RemoveBody ( Body * obj )

inlinevirtual

Remove a body.

Parameters

obj The body

Returns: The index of the removed entity

Exceptions

moordyn::invalid_value_error If the body has not been registered, or it was already removed

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ RemoveLine()

virtual unsigned int moordyn::time::Scheme::RemoveLine ( Line * obj )

inlinevirtual

Remove a line.

Parameters

obj The line

Returns: The index of the removed entity

Exceptions

moordyn::invalid_value_error If the line has not been registered, or it was already removed

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ RemovePoint()

virtual unsigned int moordyn::time::Scheme::RemovePoint ( Point * obj )

inlinevirtual

Remove a point.

Parameters

obj The point

Returns: The index of the removed entity

Exceptions

moordyn::invalid_value_error If the point has not been registered, or it was already removed

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ RemoveRod()

virtual unsigned int moordyn::time::Scheme::RemoveRod ( Rod * obj )

inlinevirtual

Remove a rod.

Parameters

obj The rod

Returns: The index of the removed entity

Exceptions

moordyn::invalid_value_error If the rod has not been registered, or it was already removed

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ SaveState()

virtual void moordyn::time::Scheme::SaveState	(	const std::string	filepath,
		unsigned int	i = `0`
	)

inlinevirtual

Save the system state on a file.

Parameters

filepath	The output file path
i	The index of the state variable to serialize

See also: ::SerializeState()

Reimplemented in moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

◆ SetCFL()

void moordyn::time::Scheme::SetCFL ( const real & cfl )

inline

Set the CFL factor.

Parameters

cfl	The CFL factor

Here is the caller graph for this function:

◆ SetGround()

void moordyn::time::Scheme::SetGround ( Body * obj )

inline

Set the ground body.

Parameters

obj	The ground body

Here is the caller graph for this function:

◆ SetState()

virtual void moordyn::time::Scheme::SetState	(	const moordyn::state::State &	state,
		unsigned int	i = `0`
	)

inlinevirtual

Resume the simulation from the stationary solution.

Parameters

state	The stationary solution
i	The index of the state variable to take

Reimplemented in moordyn::time::LocalSchemeBase< NSTATE, NDERIV >, moordyn::time::LocalSchemeBase< 1, 1 >, moordyn::time::LocalSchemeBase< 1, 5 >, moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

Here is the caller graph for this function:

◆ SetTime()

void moordyn::time::Scheme::SetTime ( const real & time )

inline

Set the simulation time.

Parameters

time The time

Note: This method is also calling to Scheme::Next()

Here is the call graph for this function:

◆ Step()

virtual void moordyn::time::Scheme::Step ( real & dt )

inlinevirtual

Run a time step.

This function is the one that must be specialized on each time scheme, but remember to call it at the end of the inherited function to increment Scheme::t_local

Parameters

dt Time step

Reimplemented in moordyn::time::ImplicitWilsonScheme, moordyn::time::ImplicitNewmarkScheme, moordyn::time::ImplicitEulerScheme, moordyn::time::ABScheme< order, local >, moordyn::time::RK4Scheme, moordyn::time::RK2Scheme, moordyn::time::HeunScheme, moordyn::time::LocalEulerScheme, moordyn::time::EulerScheme, moordyn::time::StationaryScheme, moordyn::time::SchemeBase< NSTATE, NDERIV >, moordyn::time::SchemeBase< 2, 2 >, moordyn::time::SchemeBase< 1, 2 >, moordyn::time::SchemeBase< 2, 1 >, moordyn::time::SchemeBase< 1, 1 >, and moordyn::time::SchemeBase< 5, 4 >.

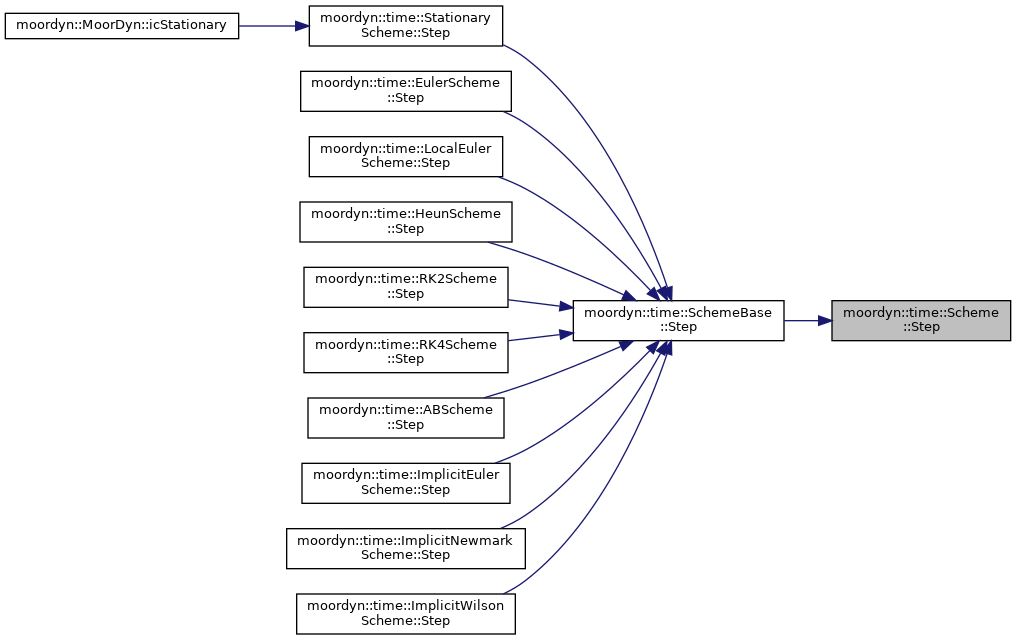

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Time.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Scheme()

Member Function Documentation

◆ AddBody()

◆ AddLine()

◆ AddPoint()

◆ AddRod()

◆ GetCFL()

◆ GetName()

◆ GetState()

◆ GetTime()

◆ Init()

◆ LoadState()

◆ Next()

◆ RemoveBody()

◆ RemoveLine()

◆ RemovePoint()

◆ RemoveRod()

◆ SaveState()

◆ SetCFL()

◆ SetGround()

◆ SetState()

◆ SetTime()

◆ Step()
