A stationary solution. More...

#include <Time.hpp>

Inheritance diagram for moordyn::time::StationaryScheme:

[legend]

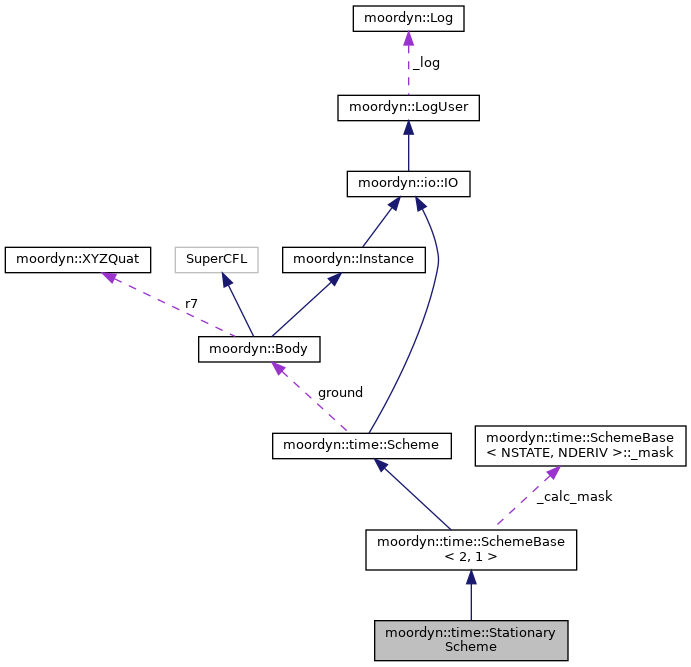

Collaboration diagram for moordyn::time::StationaryScheme:

[legend]

Public Member Functions
	StationaryScheme (moordyn::Log *log, WavesRef waves)
	Constructor. More...

	~StationaryScheme ()
	Destructor.

void	Step (real &dt)
	Run a time step. More...

real	Error () const
	Get the error computed at the last time step. More...

size_t	NStates () const
	Compute the number of state variables. More...

Public Member Functions inherited from moordyn::time::SchemeBase< 2, 1 >
virtual	~SchemeBase ()
	Destructor.

virtual void	AddLine (Line *obj)
	Add a line. More...

virtual unsigned int	RemoveLine (Line *obj)
	Remove a line. More...

virtual void	AddPoint (Point *obj)
	Add a point. More...

virtual unsigned int	RemovePoint (Point *obj)
	Remove a point. More...

virtual void	AddRod (Rod *obj)
	Add a rod. More...

virtual unsigned int	RemoveRod (Rod *obj)
	Remove a rod. More...

virtual void	AddBody (Body *obj)
	Add a body. More...

virtual unsigned int	RemoveBody (Body *obj)
	Remove a body. More...

virtual void	Init ()
	Create an initial state for all the entities. More...

virtual void	SetState (const state::State &state, unsigned int i=0)
	Resume the simulation from the stationary solution. More...

virtual void	SaveState (const std::string filepath, unsigned int i=0)
	Save the system state on a file. More...

virtual void	LoadState (const std::string filepath, unsigned int i=0)
	Load the system state from a file. More...

state::State *	rd (unsigned int i=0)
	Get the state derivative. More...

virtual std::vector< uint64_t >	Serialize (void)
	Produce the packed data to be saved. More...

virtual uint64_t *	Deserialize (const uint64_t *data)
	Unpack the data to restore the Serialized information. More...

state::State *	r (unsigned int i=0)
	Get the state. More...

state::State	GetState (unsigned int i=0)
	Get the state variable. More...

Public Member Functions inherited from moordyn::time::Scheme
virtual	~Scheme ()
	Destructor.

void	SetGround (Body *obj)
	Set the ground body. More...

std::string	GetName () const
	Get the name of the scheme. More...

real	GetTime () const
	Get the simulation time. More...

void	SetTime (const real &time)
	Set the simulation time. More...

real	GetCFL () const
	Get the CFL factor. More...

void	SetCFL (const real &cfl)
	Set the CFL factor. More...

void	Next ()
	Prepare everything for the next outer time step. More...

Public Member Functions inherited from moordyn::io::IO
	IO (moordyn::Log *log)
	Costructor. More...

virtual	~IO ()=default
	Destructor.

void	Save (const std::string filepath)
	Save the entity into a file. More...

void	Load (const std::string filepath)
	Loads the entity from a file. More...

Public Member Functions inherited from moordyn::LogUser
	LogUser (Log *log=NULL)
	Constructor. More...

	~LogUser ()
	Destructor.

void	SetLogger (Log *log)
	Set the log handler. More...

Log *	GetLogger () const
	Get the log handler. More...

Additional Inherited Members
Protected Types inherited from moordyn::time::SchemeBase< 2, 1 >
typedef struct moordyn::time::SchemeBase::_mask	mask
	A mask to determine which entities shall be computed. More...

Protected Member Functions inherited from moordyn::time::SchemeBase< 2, 1 >
	SchemeBase (moordyn::Log *log, moordyn::WavesRef waves)
	Constructor. More...

void	Update (real t_local, unsigned int substep=0)
	Update all the entities to set the state. More...

void	CalcStateDeriv (unsigned int substep=0)
	Compute the time derivatives and store them. More...

Protected Member Functions inherited from moordyn::time::Scheme
	Scheme (moordyn::Log *log)
	Constructor. More...

Protected Member Functions inherited from moordyn::io::IO
ofstream	MakeFile (const std::string filepath) const
	Create an output file and write the MoorDyn magic header. More...

std::tuple< uint64_t, uint64_t * >	LoadFile (const std::string filepath) const
	Open an input file and load the data. More...

uint64_t	Serialize (const uint64_t &i)
	Pack an unsigned integer to make it writable. More...

uint64_t	Serialize (const int64_t &i)
	Pack an integer to make it writable. More...

uint64_t	Serialize (const real &f)
	Pack a float to make it writable. More...

std::vector< uint64_t >	Serialize (const vec &m)
	Pack a 3D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const vec6 &m)
	Pack a 6D vector to make it writable. More...

std::vector< uint64_t >	Serialize (const mat &m)
	Pack a 3x3 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const mat6 &m)
	Pack a 6x6 matrix to make it writable. More...

std::vector< uint64_t >	Serialize (const quaternion &m)
	Pack a quaternion to make it writable. More...

std::vector< uint64_t >	Serialize (const XYZQuat &m)
	Pack an XYZQuat to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< real > &l)
	Pack a list of floating point numbers to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec > &l)
	Pack a list of 3D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< vec6 > &l)
	Pack a list of 6D vectors to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat > &l)
	Pack a list of 3x3 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const std::vector< mat6 > &l)
	Pack a list of 6x6 matrices to make it writable. More...

std::vector< uint64_t >	Serialize (const Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &l)
	Pack an arbitrarily large matrix. More...

template<typename T >
std::vector< uint64_t >	Serialize (const std::vector< std::vector< T >> &l)
	Pack a list of lists to make it writable This function might act recursively. More...

uint64_t *	Deserialize (const uint64_t *in, uint64_t &out)
	Unpack a loaded unsigned integer. More...

uint64_t *	Deserialize (const uint64_t *in, int64_t &out)
	Unpack a loaded integer. More...

uint64_t *	Deserialize (const uint64_t *in, real &out)
	Unpack a loaded floating point number. More...

uint64_t *	Deserialize (const uint64_t *in, vec &out)
	Unpack a loaded 3D vector. More...

uint64_t *	Deserialize (const uint64_t *in, vec6 &out)
	Unpack a loaded 6D vector. More...

uint64_t *	Deserialize (const uint64_t *in, mat &out)
	Unpack a loaded 3x3 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, mat6 &out)
	Unpack a loaded 6x6 matrix. More...

uint64_t *	Deserialize (const uint64_t *in, quaternion &out)
	Unpack a loaded quaternion. More...

uint64_t *	Deserialize (const uint64_t *in, XYZQuat &out)
	Unpack a loaded XYZQuat. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< real > &out)
	Unpack a loaded list of floating point numbers. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec > &out)
	Unpack a loaded list of 3D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< vec6 > &out)
	Unpack a loaded list of 6D vectors. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat > &out)
	Unpack a loaded list of 3x3 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, std::vector< mat6 > &out)
	Unpack a loaded list of 6x6 matrices. More...

uint64_t *	Deserialize (const uint64_t *in, Eigen::Matrix< real, Eigen::Dynamic, Eigen::Dynamic > &out)
	Unpack an arbitrarily large matrix. More...

template<typename T >
uint64_t *	Deserialize (const uint64_t *in, std::vector< std::vector< T >> &out)
	Unpack a loaded list of lists. More...

Protected Attributes inherited from moordyn::time::SchemeBase< 2, 1 >
std::array< moordyn::state::State *, NSTATE >	_r
	The list of states.

std::array< moordyn::state::State *, NDERIV >	_rd
	The list of state derivatives.

std::shared_ptr< Waves >	waves
	The waves instance.

mask	_calc_mask
	The SchemeBase::CalcStateDeriv() mask.

Protected Attributes inherited from moordyn::time::Scheme
Body *	ground
	The ground body.

std::vector< Line * >	lines
	The lines.

std::vector< Point * >	points
	The points.

std::vector< Rod * >	rods
	The rods.

std::vector< Body * >	bodies
	The bodies.

std::string	name
	The scheme name.

real	t
	The simulation time.

real	t_local
	The local time, within the outer time step.

real	cfl
	Maximum CFL factor.

Protected Attributes inherited from moordyn::LogUser
Log *	_log
	The log handler.

Detailed Description

A stationary solution.

The stationary solution is featured by the lack of velocity on the system, i.e. the system positions are integrating directly from the accelerations

Constructor & Destructor Documentation

◆ StationaryScheme()

moordyn::time::StationaryScheme::StationaryScheme	(	moordyn::Log *	log,
		moordyn::WavesRef	waves
	)

Constructor.

Parameters

log	Logging handler
waves	Waves instance

Member Function Documentation

◆ Error()

real moordyn::time::StationaryScheme::Error ( ) const

inline

Get the error computed at the last time step.

Returns: The error, StationaryScheme::_error

Here is the caller graph for this function:

◆ NStates()

size_t moordyn::time::StationaryScheme::NStates ( ) const

inline

Compute the number of state variables.

This can be used to renormalize the error, so it makes more sense to the final user

Returns: The number of state variables

Note: Each entry on the states is considered a single variable, that is no matter if the state is a scalar, a vector or a quaternion, it is considered as a single entry

Here is the caller graph for this function:

◆ Step()

void moordyn::time::StationaryScheme::Step ( real & dt )

virtual

Run a time step.

This function is the one that must be specialized on each time scheme

Parameters

dt Time step

Reimplemented from moordyn::time::SchemeBase< 2, 1 >.

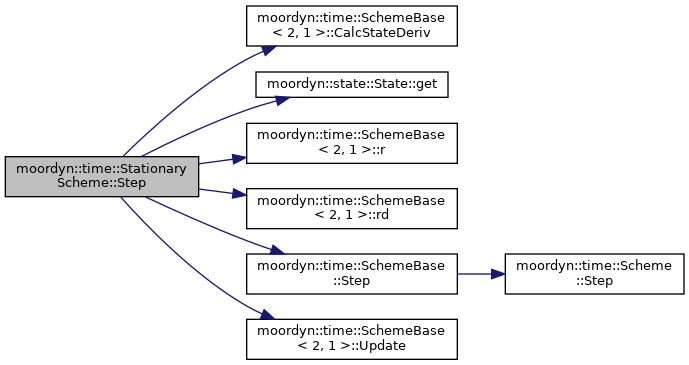

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Time.hpp
/home/docs/checkouts/readthedocs.org/user_builds/moordyn/checkouts/latest/source/Time.cpp
